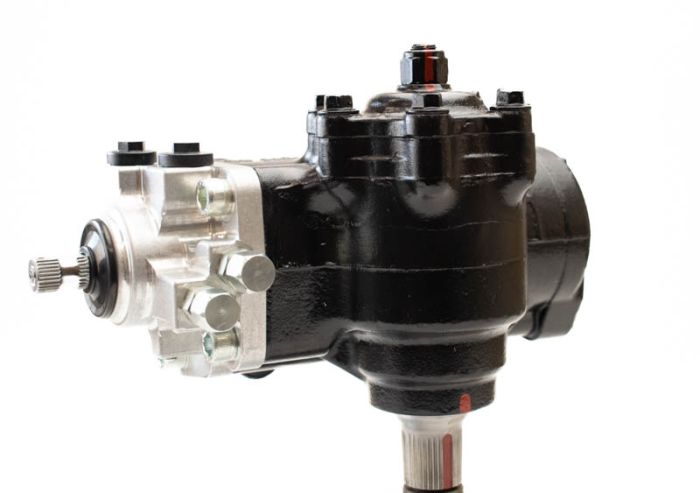

  • PSC Big Bore XD® steering gear with black and silver anodization for use with 2nd gen Dodge RAM trucks to fir n 1994-2002 RAM 2500/3500 on a white background.
  • Comparison of stock shaft and PSC XD shaft with labeled parts on a white background.
  • Black mechanical component with bolts and washers on a white background
  • PSC Big Bore XD® steering gear with black and silver anodization for use with 2nd gen Dodge RAM trucks to fir n 1994-2002 RAM 2500/3500 on a white background.
  • PSC Big Bore XD® steering gear with black and silver anodization for use with 2nd gen Dodge RAM trucks to fir n 1994-2002 RAM 2500/3500 on a white background. The angle from the side it mounts on.
  • PSC Big Bore XD® steering gear with black and silver anodization for use with 2nd gen Dodge RAM trucks to fir n 1994-2002 RAM 2500/3500 on a white background. Angle 3 showing the spline.

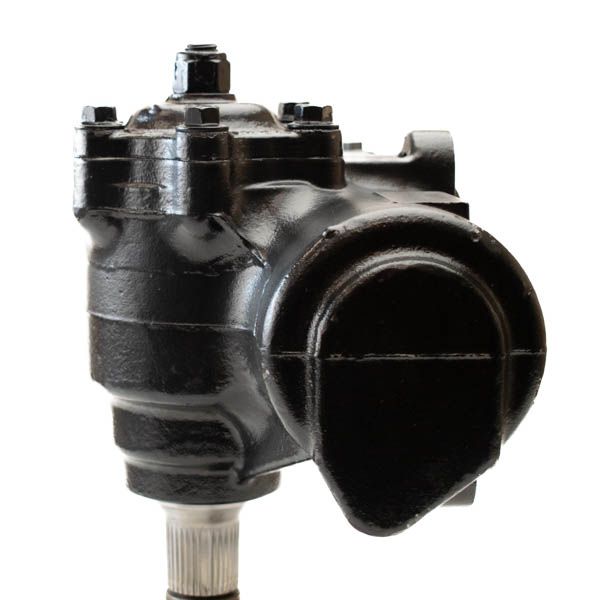

  • PSC Big Bore XD® steering gear with black and silver anodization for use with 2nd gen Dodge RAM trucks to fir n 1994-2002 RAM 2500/3500 on a white background. Angle 4 view.
1 7

BIG BORE XD® Steering Gear – Dodge RAM 2500/3500 (1994–2002)

BIG BORE XD® Steering Gear – Dodge RAM 2500/3500 (1994–2002)

$1,195.00
$1,195.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: SG851R

Gear Type

The factory steering on 2nd Gen Dodge RAM trucks? Let’s be honest—it’s weak. That’s why we built the BIG BORE XD Steering Gear, a serious upgrade designed to eliminate steering wander and give you the confidence to handle big tires, heavy loads, and tough terrain.

This gear is based on the newer Dodge XD platform, modified for a direct bolt-in fit on your 1994–2002 RAM 2500/3500. With a beefed-up 45mm sector shaft, larger bearings, and an 80mm piston, it delivers rock-solid steering and eliminates the need for aftermarket braces. Whether you’re daily driving or towing heavy, this is the fix your truck has been waiting for.

View full details

About:About:

Why you’ll love it

  • No More Steering Wander: Bigger bearings and a stronger sector shaft keep everything tight.
  • Built for Abuse: Handles big tires, towing, and off-road punishment.
  • Direct Bolt-In: Works with OEM hoses and pitman arm—no crazy mods needed.

Tech InfoTech Info

Heads‑up for installers

  • This gear is 4WD only—won’t fit 2WD trucks.
  • Not compatible with aftermarket steering braces (you won’t need one anyway).
  • Includes spacers and hardware for proper frame clearance.

Fitment

Dodge RAM 2500/3500 (1994–2002), 4WD only

Specs

  • 45 mm sector shaft with oversized bearing
  • 80 mm internal piston
  • 16:1 steering ratio (3.25 turns lock-to-lock)
  • Compatible with OEM and aftermarket pitman arms

What’s included

  • BIG BORE XD Steering Gear (choose your option below)
  • Mounting hardware and spacers
  • Standard BIG BORE XD Steering Gear – For stock or mild builds
  • BIG BORE XD Cylinder Assist® Steering Gear – Pre-drilled and tapped for hydraulic assist
  • Scratch & Dent BIG BORE XD Steering Gear – Same performance, cosmetic blemishes, discounted price

SupportSupport

Install Instructions

Installation Video

Installation Video Thumbnail

OEM Cross Reference

SG851: Mopar 52113500AC
