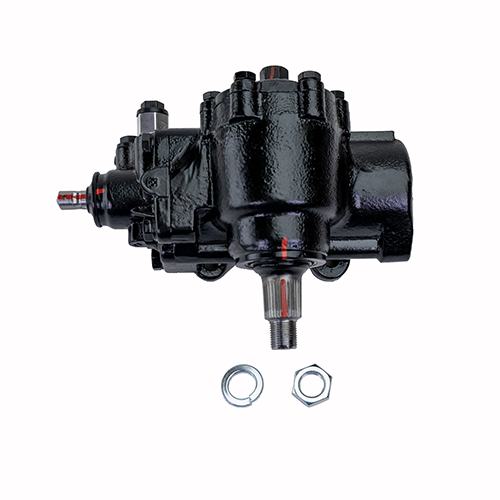

  • Overhead view of a black steering gear with a machined input and output shaft, accompanied by a washer and hex nut positioned below the gear on a white background.

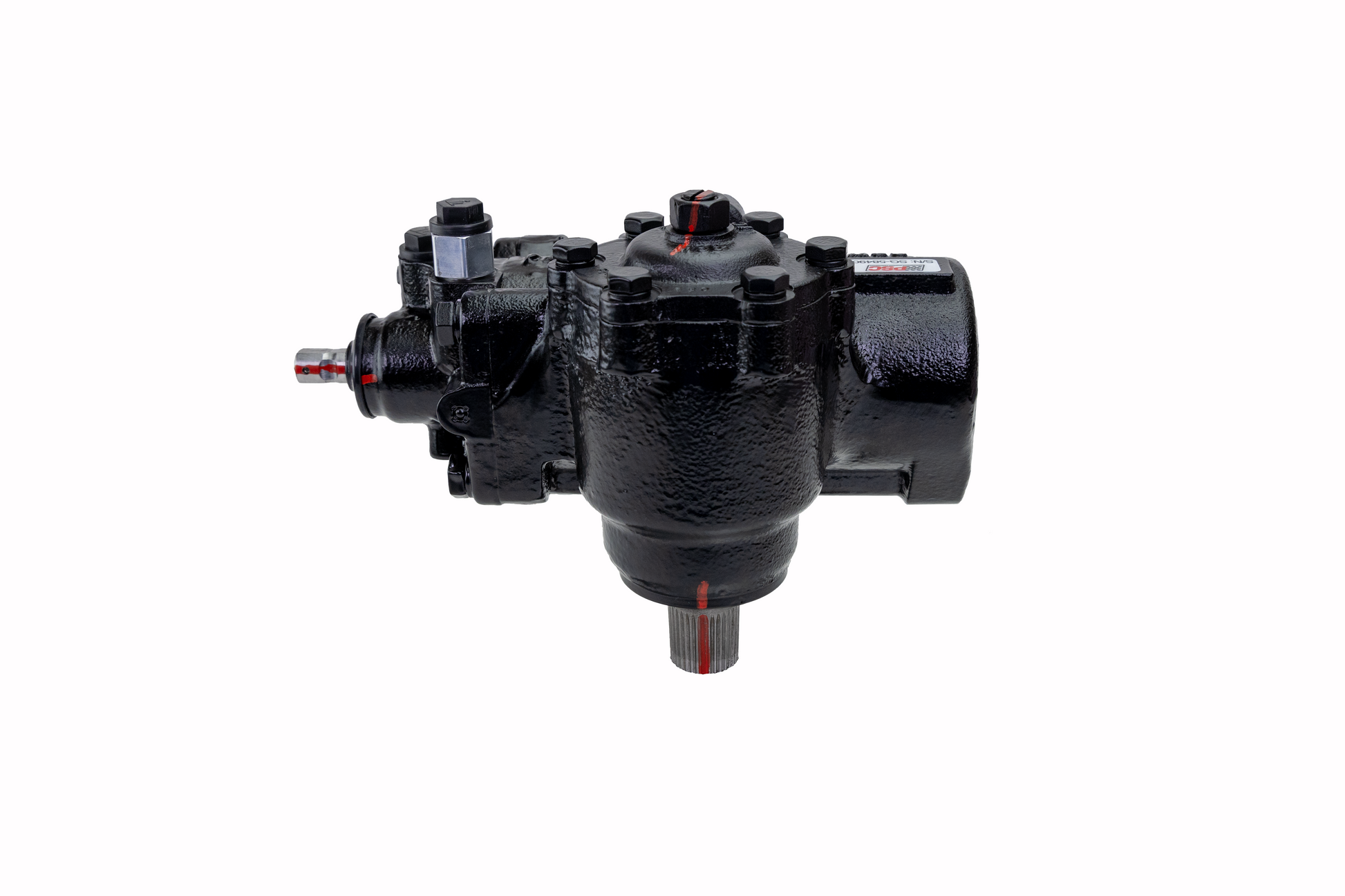

  • Angled view of a black steering gear with visible input and output shafts, showing precision-machined details and red alignment marks on a white background.
1 2

BIG BORE XD® Steering Gears – GM 2500/3500 & Hummer H2 (1999–2010)

BIG BORE XD® Steering Gears – GM 2500/3500 & Hummer H2 (1999–2010)

$1,095.00
$1,095.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: SG039

Ports

The factory steering gear in these trucks has always been a weak spot—until now. PSC’s BIG BORE XD Steering Gear is built to handle the demands of lifted trucks, oversized tires, and serious off-road use. With a beefed-up 45mm sector shaft and upgraded roller bearings, this gear eliminates the deflection and seal failures that plague OEM units.

Whether you’re running a standard setup or PSC’s Cylinder Assist system, we’ve got the gear for you. All-new components, no remanufactured parts, and PSC’s proven durability make this a must-have upgrade for your GM 2500/3500 or Hummer H2.

View full details

About:About:

Why you’ll love it

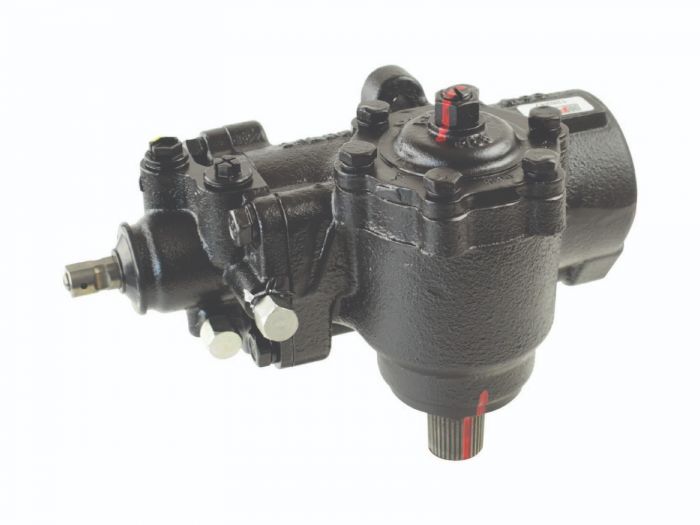

  • SG039R is available for setups running a PSC Cylinder Assist Steering System.
  • SG039 requires a PA806 4-Master Spline Pitman Arm—don’t forget to grab one if you don’t already have it.

Tech InfoTech Info

Heads‑up for installers

  • Requires PA806 4-Master Spline Pitman Arm.
  • Make sure to flush and bleed the system properly.
  • Cylinder Assist version includes ports for ram assist plumbing.

Fitment

  • Vehicles: GM 2500/3500 4x4 & Hummer H2
  • Years: 1999–2010
  • Note: SG039R is for use with PSC Cylinder Assist® systems.

Specs

  • Sector Shaft: 45mm diameter
  • Bearings: Upgraded roller bearings
  • Ports: Standard or Cylinder Assist® (SG039R)
  • Build: All-new components, not remanufactured

What’s included

(1) BIG BORE XD Steering Gear (choose standard or Cylinder Assist)
