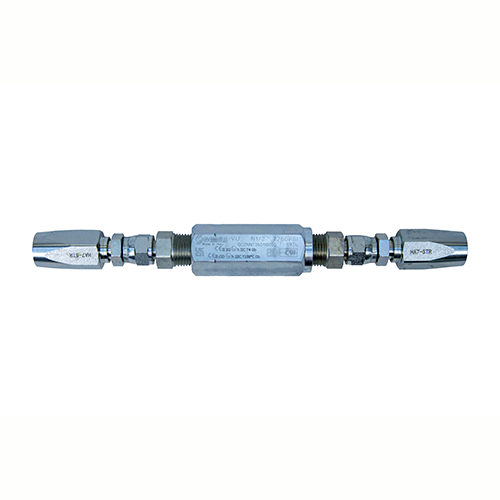

  • One-Way Check Valve Kit, with -6 AN fitting size, assembled in a white background.

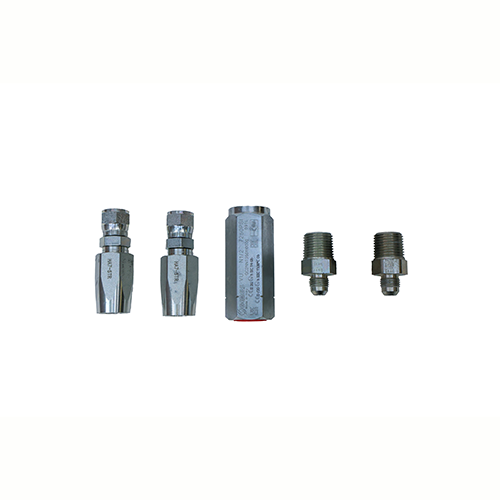

  • Before assembly, One-Way In-Line Check Valve Kit featuring a silver hydraulic valve assembly kit showing engraving on a white background.

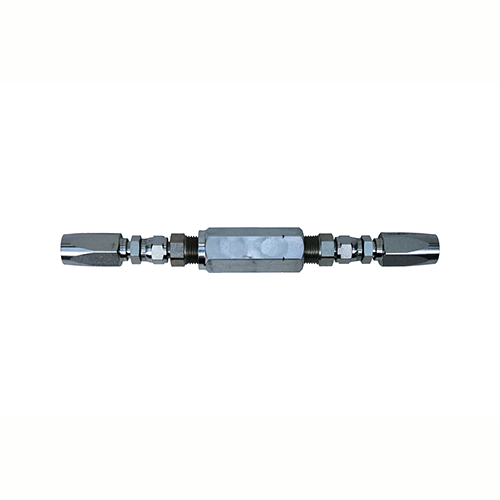

  • One-Way Check Valve Kit, with -8 AN fitting size, assembled in a white background.
1 4

One-Way Check Valve Kit – In-Line Type

One-Way Check Valve Kit – In-Line Type

$130.00
$130.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: CV100-6

Fitting Size

Don’t let backflow mess with your steering system! Our One-Way Check Valve Kit – In-Line Type is a simple but critical piece of the puzzle. It makes sure your hydraulic fluid only flows in one direction—just like it should. That means no back pressure sneaking in to damage components and no surprises when you’re out on the trail. Plus, it’s perfect for isolating sections of your system when you need to service or troubleshoot.

Available in two sizes:

-6 AN Fittings
-8 AN Fittings

View full details

Tech InfoTech Info

Heads‑up for installers

Install it in-line on the return or pressure side where you need one-way flow. Make sure the arrow on the valve points in the direction of flow—easy as that.

Specs

  • Type: In-Line One-Way Check Valve
  • Fitting Options: -6 AN or -8 AN
  • Material: High-strength steel body with corrosion-resistant finish
  • Operating Pressure: Up to 3,000 PSI
  • Flow Direction: Single (marked with arrow on valve body)

What’s included

  • In-Line One-Way Check Valve
  • AN fittings (size based on your selection)
