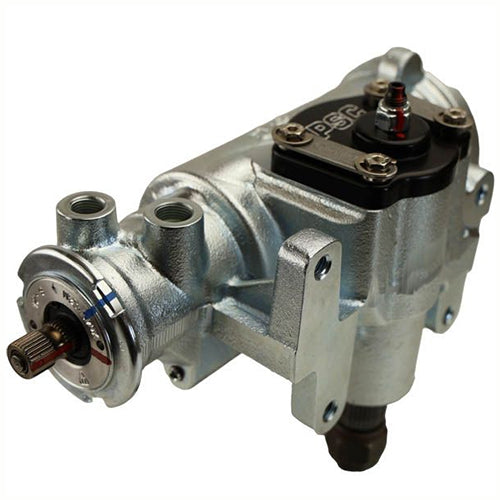

BIG BORE XD® Autocross Series 10:1 Steering Gear – Chevy/GMC C-Series (1967–1986)

BIG BORE XD® Autocross Series 10:1 Steering Gear – Chevy/GMC C-Series (1967–1986)

$1,495.00
$1,495.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: SGX042-10S

This product typically ships within 3 business days.

Building a C10 that handles like a modern truck? This is the box you want. PSC’s BIG BORE XD Autocross Series Steering Gear is a direct bolt-in for 1967–1986 Chevy and GMC C-Series trucks, built to give you tight, responsive steering without cutting or fab work.

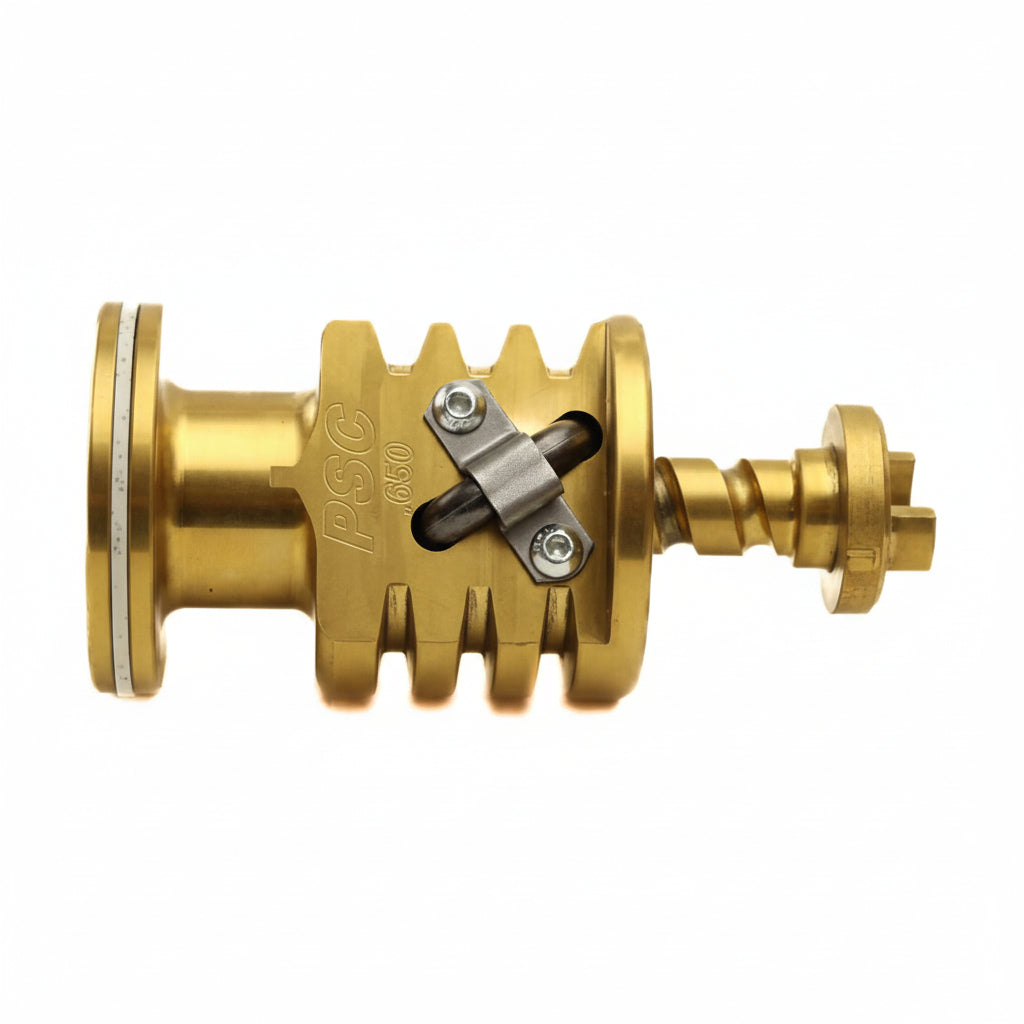

It’s built around our PSC 8204 Series zinc-plated casting, with a TiN-coated 80 mm piston and 10:1 ratio for smooth, high-performance feel. Inside, it’s got double lead ball tech that keeps things tight and predictable when you’re pushing it through corners. Outside, it’s finished with a billet top cover, Stage 8 locking fasteners, and a billet end cap — because strength and style both matter.

Whether you’re Autocrossing, cruising, or just want your classic truck to steer like it should’ve from the factory, this box is built to handle it.

View full details

About:About:

Why you’ll love it

  • Autocross-ready performance – Fast ratio, smooth feel, and tight response.
  • All-new components – No reman parts.
  • Direct bolt-in – No cutting, welding, or fab work.
  • Made in the USA – Cast, machined, and hand-built right here.

Tech InfoTech Info

Heads‑up for installers

Choose the correct input spline and port style for your model year:

  • 1967–1976: 13/16"-36 spline, O-ring ports
  • 1977–1979: 3/4"-30 spline, O-ring ports
  • 1980–1986: 3/4"-30 spline, inverted flare ports
  • Bleed the system properly after install for best performance.

Specs

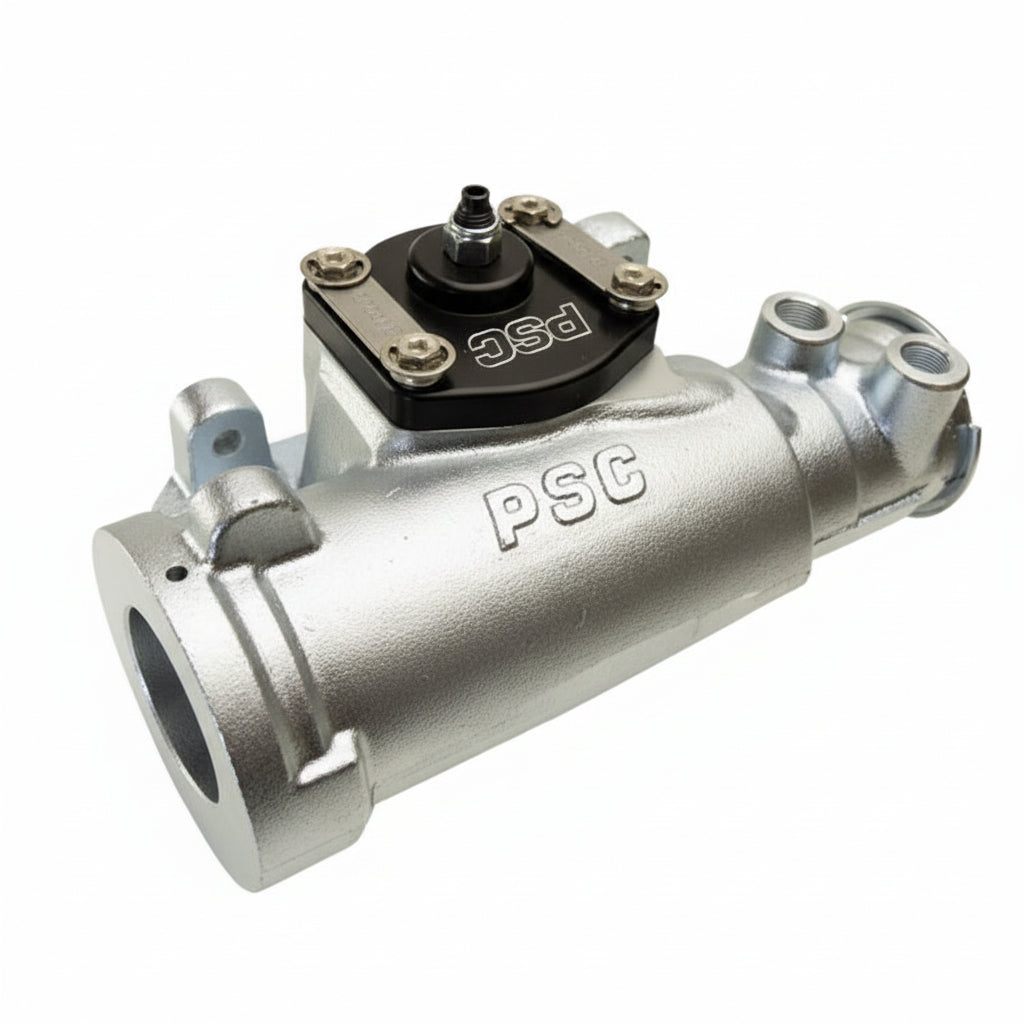

  • Casting: PSC 8204 Series, zinc-plated
  • Piston: TiN-coated 80mm, 10:1 ratio
  • Valving: PSC ported and tuned
  • Top Cover: Billet aluminum with Stage 8 locking fasteners

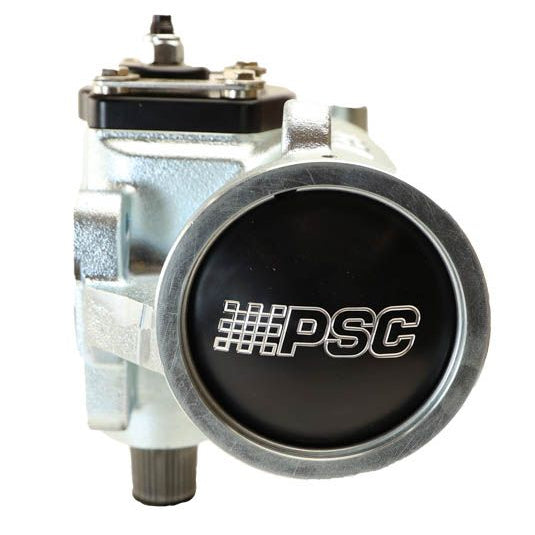

  • End Cap: Billet aluminum
  • Ports:

O-ring: 16 mm x 1.5 return / 18 mm x 1.5 pressure

Inverted Flare: 5/8-18 return / 11/16-18 pressure

What’s included

  • BIG BORE XD Autocross Series Steering Gear
  • Pre-installed billet top cover and end cap
  • Stage 8 locking hardware
  • Ready-to-install unit (choose correct year/spline/port variant)
