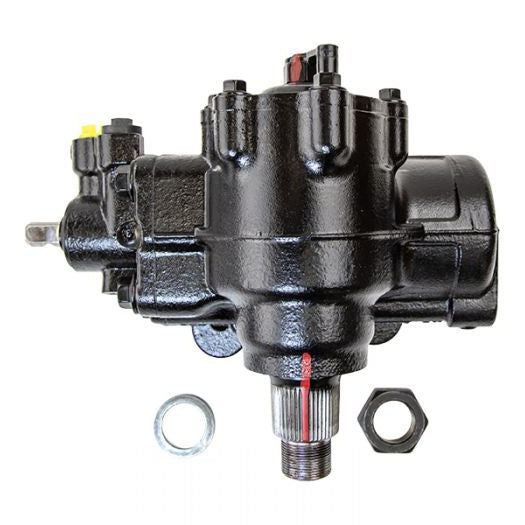

  • Black PSC steering gear SG856 with a threaded output shaft, hex nut and washer displayed on a white background for detailed product presentation.

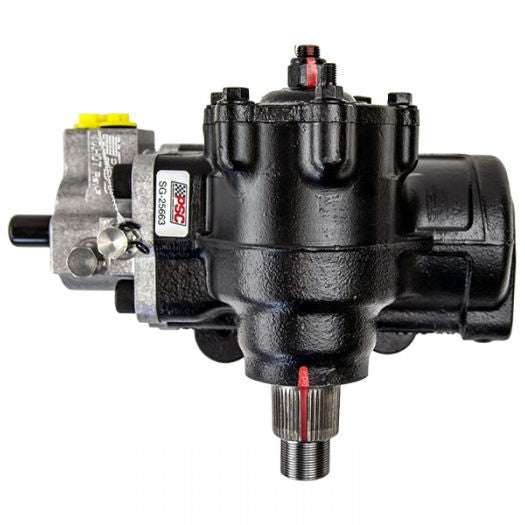

  • Black PSC steering gear SG856R with a threaded output shaft, hex nut and washer displayed on a white background for detailed product presentation.
1 2

BIG BORE XD® Steering Gear - RAM 2500/3500 (2009-2024)

BIG BORE XD® Steering Gear - RAM 2500/3500 (2009-2024)

$1,195.00
$1,195.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: SG856

Type

If you’re running a RAM 2500 or 3500 and your steering’s gotten sloppy, vague, or just plain worn out—PSC’s BIG BORE XD Steering Gear is the upgrade you need. This thing’s built like a tank and designed to handle the kind of abuse that makes stock steering gears tap out.

The SG856 gear features a massive 45mm sector shaft and a larger lower support bearing, which all but eliminates side-to-side movement. That means tighter steering, better control, and no need for aftermarket steering braces. Inside, an 80mm piston assembly and 16:1 steering ratio deliver smooth, confident handling with about 3.5 turns lock-to-lock.

Whether you’re towing, off-roading, or just want your truck to feel solid again, this gear’s ready to work.

View full details

About:About:

Why you’ll love it

  • Built for heavy-duty use – no more sloppy steering
  • 45mm sector shaft – stronger than stock, no brace needed
  • 80mm piston & 16:1 ratio – smooth, responsive feel
  • Direct fit replacement for multiple Mopar part numbers
  • Compatible with factory hoses and pitman arms

Tech InfoTech Info

Heads‑up for installers

This gear fits 2009–2024 RAM 2500/3500 2WD & 4WD trucks without LaneSense Lane Departure Warning. If your truck has LaneSense, this gear won’t work—double-check before ordering. It bolts up to factory high-pressure and return lines and works with both OEM and aftermarket pitman arms.

Fitment

  • Dodge/RAM 2500 & 3500 (2009–2024)
  • 2WD and 4WD models
  • Not compatible with LaneSense Lane Departure Warning

Specs

  • Steering Gear Model: SG856
  • Sector Shaft Diameter: 45mm
  • Internal Piston: 80mm
  • Steering Ratio: 16:1 (approx. 3.5 turns lock-to-lock)
  • Ports: Compatible with OEM high-pressure and return lines
  • Pitman Arm Compatibility: Works with factory and aftermarket arms
  • Finish: Black Painted Casting

What’s included

BIG BORE XD Steering Gear

SupportSupport

OEM Cross Reference

Direct replacement for:

  • Mopar 68575538AB
  • Mopar 52122316AC
  • Mopar 52122316AD
  • Mopar 52122315AD
  • Mopar 68575538AB Diesel Engines
  • Mopar 68575536AA Gas Hemi V8 Engines
California Prop 65 Warning

California Prop 65 Warning

This product can expose you to chemicals including lead and di (2-ethylhexyl) phthalate, which are known to the State of California to cause cancer, birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov
