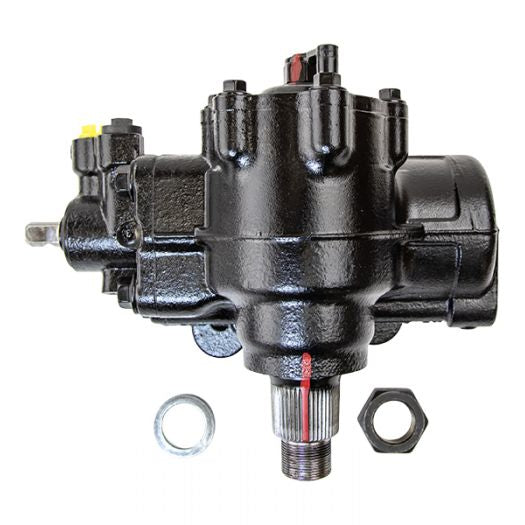

  • Black PSC steering gear SG856 with a threaded output shaft, hex nut and washer displayed on a white background for detailed product presentation.
1 1

BIG BORE XD® Steering Gear – RAM 2500/3500 (2009–2024) – PSC Certified Refurbished

BIG BORE XD® Steering Gear – RAM 2500/3500 (2009–2024) – PSC Certified Refurbished

$595.00
$1,195.00 $595.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: SD-SG856

The factory steering on late-model RAM trucks does the job—until you add bigger tires, weight, or start using the truck hard.

These are PSC BIG BORE XD® Steering Gears (SG856) for 2009–2024 RAM 2500 and 3500 trucks, offered as PSC Certified Refurbished units.

Each unit has been inspected, rebuilt where needed, and tested to meet our performance standards. They may show minor cosmetic wear from prior use or handling, but they are fully functional and built to perform the same as our standard units.

Built with a larger sector shaft and upgraded internal components, this gear is designed to handle oversized tires, added load, and real-world use—without the loose, wandering feel common in factory steering.

This version is a standard port configuration, making it a solid choice for trucks running a traditional steering setup without Cylinder Assist.

If your steering feels inconsistent, loose, or worn out, this is a straightforward upgrade that tightens everything up and puts control back in your hands.

All refurbished unit sales are final.

View full details

About:About:

Why you’ll love it

  • Built for heavy-duty use – no more sloppy steering
  • 45 mm sector shaft – stronger than stock, no brace needed
  • 80 mm piston & 16:1 ratio – smooth, responsive feel
  • Direct fit replacement for multiple Mopar part numbers
  • Compatible with factory hoses and pitman arms

Tech InfoTech Info

Heads‑up for installers

This gear fits 2009–2024 RAM 2500/3500 2WD & 4WD trucks without LaneSense Lane Departure Warning. If your truck has LaneSense, this gear won’t work—double-check before ordering. It bolts up to factory high-pressure and return lines and works with both OEM and aftermarket pitman arms.

Fitment

  • Dodge/RAM 2500 & 3500 (2009–2024)
  • 2WD and 4WD models
  • Not compatible with LaneSense Lane Departure Warning

Specs

  • Steering Gear Model: SG856
  • Sector Shaft Diameter: 45 mm
  • Internal Piston: 80 mm
  • Steering Ratio: 16:1 (approx. 3.5 turns lock-to-lock)
  • Ports: Compatible with OEM high-pressure and return lines
  • Pitman Arm Compatibility: Works with factory and aftermarket arms
  • Finish: Black Painted Casting

What’s included

  • (1) SG856 BIG BORE XD® Steering GearBIG BORE XD Steering Gear

SupportSupport

OEM Cross Reference

Direct replacement for:

  • Mopar 68575538AB
  • Mopar 52122316AC
  • Mopar 52122316AD
  • Mopar 52122315AD
  • Mopar 68575538AB Diesel Engines
  • Mopar 68575536AA Gas Hemi V8 Engines
