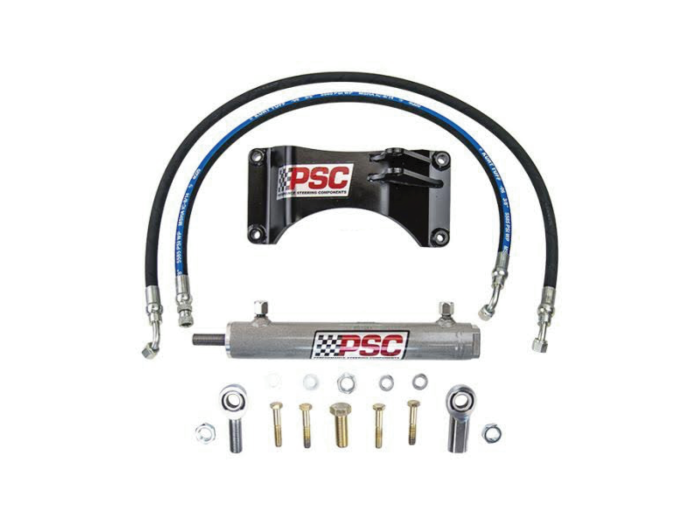

Cylinder Assist® Axle Kit - Ford Super Duty Dana 60

• Less fight, more control – Dials back shimmy, kickback, and wander.
• Made for big tires – Keep 35s–40s pointed where you want ‘em.
• Bolts on clean – Year-specific mount keeps install tidy.
• Work-truck tough – Built to handle tow duty, job sites, and long highway miles.

• Requires a ported steering gear. This kit will not work without one.
• No tie‑rod clamp or weld tabs are included. Bring your own clamp/tabs to match your tie‑rod.
• Center the cylinder: Set the cylinder at mid‑stroke with the steering at true center before final tighten.
• Cycle it: Turn lock‑to‑lock and compress the suspension to check hose routing and clearances.
• Torque & re‑torque: Follow torque specs and re‑check after your first shake‑down drive.
• Alignment helps: A quick toe check after install will keep things tracking straight.

Ford Super Duty 4×4 with Dana 60 / Dana Super 60 front axle

• CRSD Steering Stabilizer Kit – Ford Super-Duty Dana 60 (1999–2004)  - CAK752R-OE (solid axle geometry for early Super Duty)
• CRSD Steering Stabilizer Kit – Ford Super-Duty Dana 60 (2005–2022) - CAK75XR-OE Kit (updated knuckles/trackbar geometry)

Notes: Some F450 / F550 configurations use different brackets/components. Verify front axle/bracket style and steering linkage before ordering.

• Cylinder Assist Cylinder: Single Ended, 1.5" bore × 8.0" stroke (SC2200)
• Rod Ends: 5/8" female, 5/8" male, 5/8" ball (SCRK6)
• Hose Kit: HK2063 – routing lengths for standard Dana 60/Super 60 placement
• Mounting: Year specific bolt-on cylinder mount kit

2005–2022 uses MB760K

1999–2004 uses the correct bolt on mount for early geometry (included with CAK752R-OE)

• Cylinder Assist – Single-Ended – 1.5" × 8.0" (SC2200)
• Bolt-On Cylinder Assist® Mount Kit – Ford Super Duty Dana 60 (1999–2004)
• Cylinder Assist Rod End Kit – 5/8" Female, 5/8" Male – 5/8" Ball – No Hardware (SCRK6)
• HK2063 Hose Kit – Cylinder Assist Steering Installation
• Not Included: Tie-rod clamp or weld tabs

CRSD Steering Stabilizer Kit – Ford Super-Duty Dana 60 (2005–2022) - CAK75XR-OE Kit

• Cylinder Assist – Single-Ended – 1.5" × 8" (SC2200)
• Hose Kit – Cylinder Assist, Ford Super Duty (2005–2022) (HK2065)
• Bolt-On Cylinder Assist Mount Kit – Ford Super Duty Dana 60 (2005–2022) (MB760K)
• Tie Rod Clamp – 1.75" Single Shear Steel (TRCL1.75)
• Cylinder Assist Rod End Kit – 5/8" Female, 5/8" Male – 5/8" Ball – No Hardware (SCRK6)
