DIY High-Pressure Hose Kit - Pump to Hydro-Boost to Gear - GM

• No Guesswork – Everything you need to plumb your high-pressure lines from pump to Hydro-Boost to gear, all in one box.
• Built for Real Rigs – Tough enough for off-road abuse, reliable enough for daily drivers.
• PSC-Approved – These are the same fittings and hose we trust in our own builds.
• DIY-Friendly – Clean routing, solid connections, and no weird adapters to hunt down.

• This kit is DIY-friendly, but make sure your hose routing avoids sharp bends or rubbing points.
• Use proper hose cutting and crimping tools for best results.
• Double-check fitting torque specs — leaks love loose threads.

• GM Saginaw P and TC Series Pumps
• Most Hydro-Boost units (in/out ports)
• High-pressure port on PSC Steering Gears

• Hose Type: #6 High-Pressure Hose
• Hose Length: 8 ft
• Fittings:

-6 AN 90° Fittings – Qty 4

18 mm-1.5 x -6 AN Adapter – Qty 2

16 mm-1.5 x -6 AN Adapter – Qty 2

• Fitting Style: Metric O-Ring to -6 AN
• Compatible With: GM Saginaw P and TC Series Pumps, most Hydro-Boost units, PSC steering gears

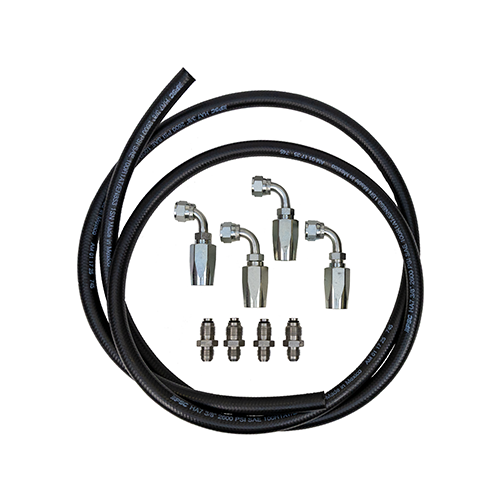

• (4) #6 90° Fittings
• (1) 8 FT #6 High-Pressure Hose
• (2) 18 mm-1.5 x -6 AN Adapter Fittings
• (2) 16 mm-1.5 x -6 AN Adapter Fittings
