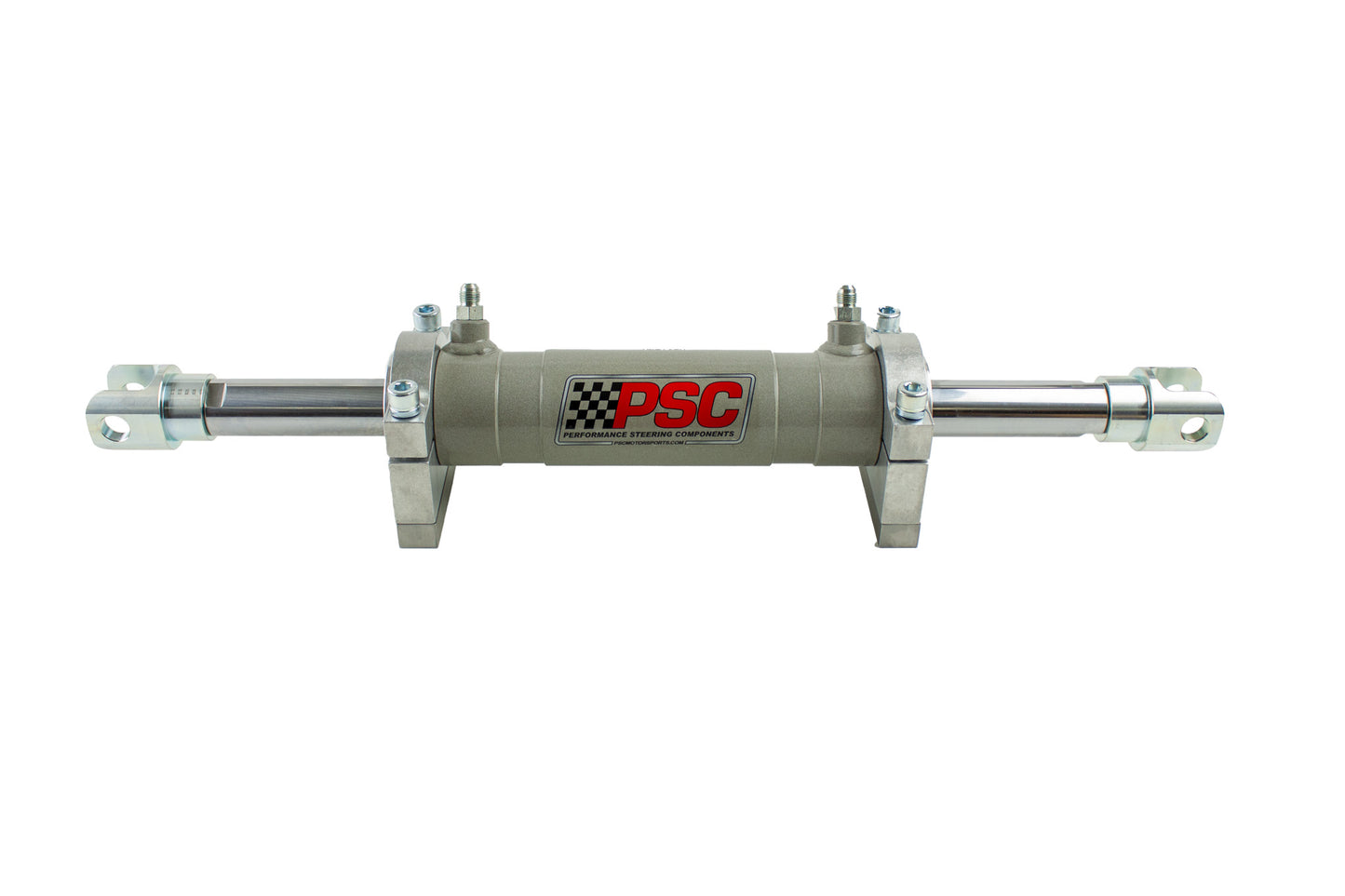

  • Metal cylindrical component with PSC logo on a white background

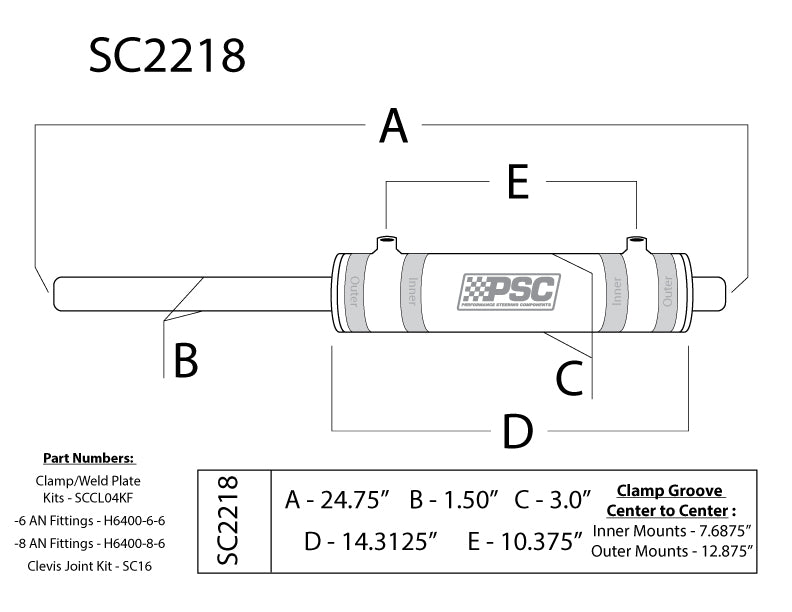

  • Technical diagram of a PSC exhaust system component with labeled dimensions and part numbers.

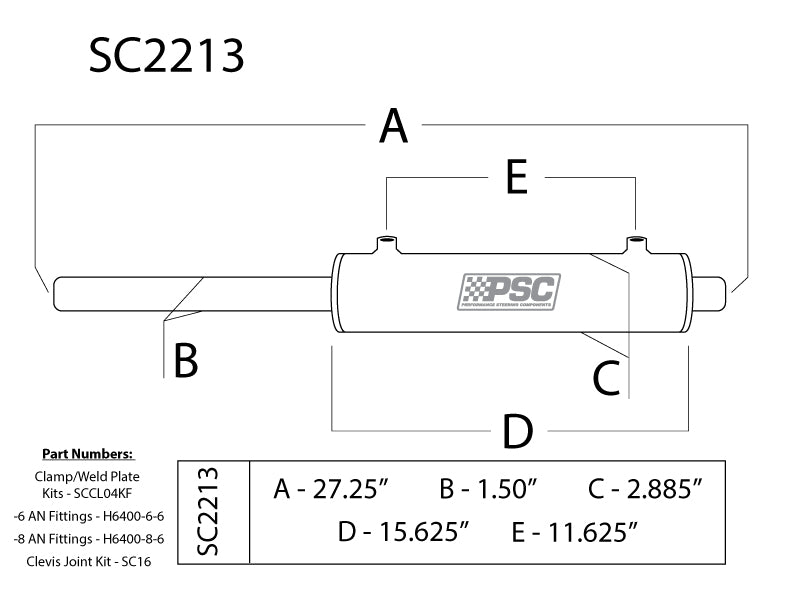

  • Technical drawing of a exhaust system component with labeled dimensions and PSC branding.
  • Technical diagram of a PSC exhaust component with labeled dimensions and part numbers.
  • Technical drawing of a mechanical component with labeled dimensions and PSC branding.

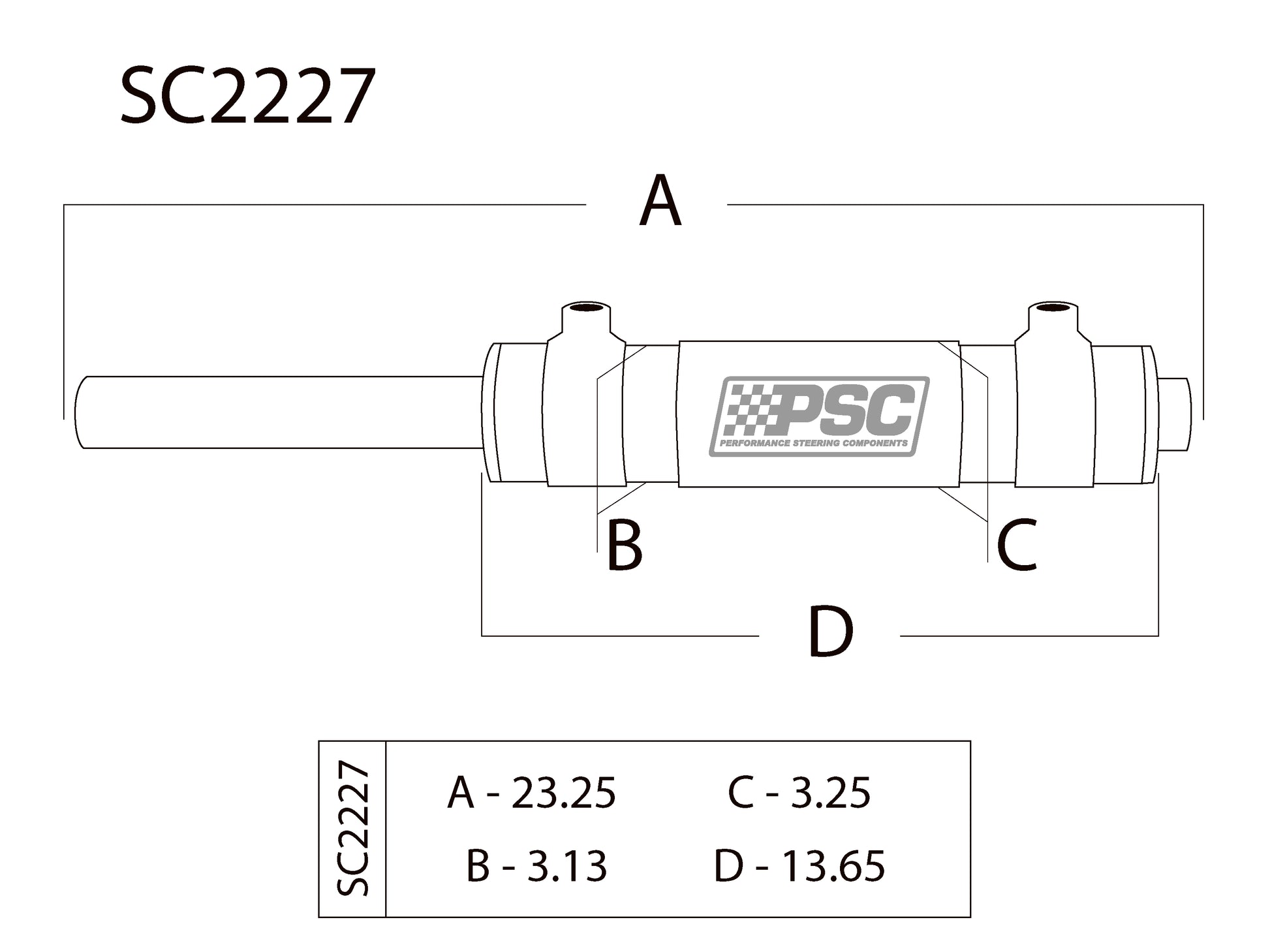

  • Technical drawing of a mechanical component with dimensions labeled, featuring the PSC logo.
  • Technical drawing of a mechanical component with dimensions and PSC branding.
1 8

Double-Ended Full Hydraulic Steering Cylinders & Kits

Double-Ended Full Hydraulic Steering Cylinders & Kits

$412.50
$412.50
Sale Out of Stock
Shipping calculated at checkout.

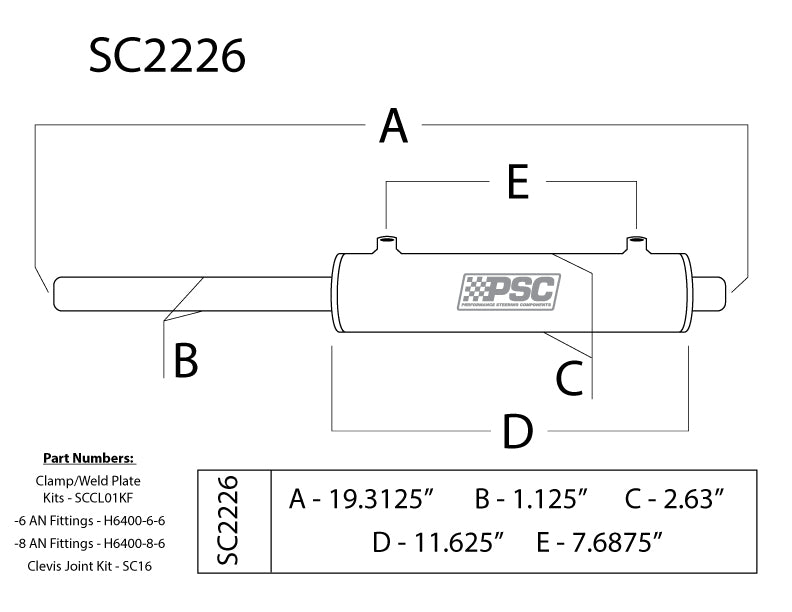

Part Number: SC2226

Cylinder Size
Clamp Quantity

If you're building a full hydraulic setup and want steering that’s smooth, strong, and trail-proven—these are the cylinders you want. PSC’s double-ended hydraulic steering cylinders are built to handle serious abuse, whether you're crawling over boulders or blasting through mud. We’ve got sizes to match your rig and tire setup, and every one of them is built with PSC’s signature durability and performance.

These cylinders are the heart of your full hydraulic system. They’re double ended, double-acting, and ready to work hard so you don’t have to. Whether you're running 37s or 43s, we’ve got a bore and stroke combo that’ll keep your steering tight and responsive.

View full details

Tech InfoTech Info

Heads‑up for installers

These are replacement cylinders for full hydraulic steering systems. Make sure your mounts and linkage are dialed in for the bore and stroke you choose. If you’re not sure what size you need, give us a shout—we’ll help you pick the right one for your setup.

Specs

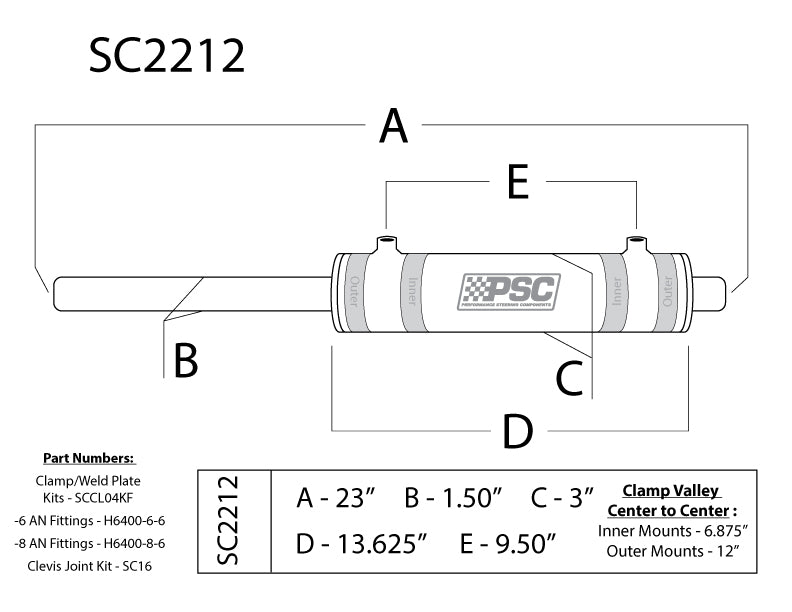

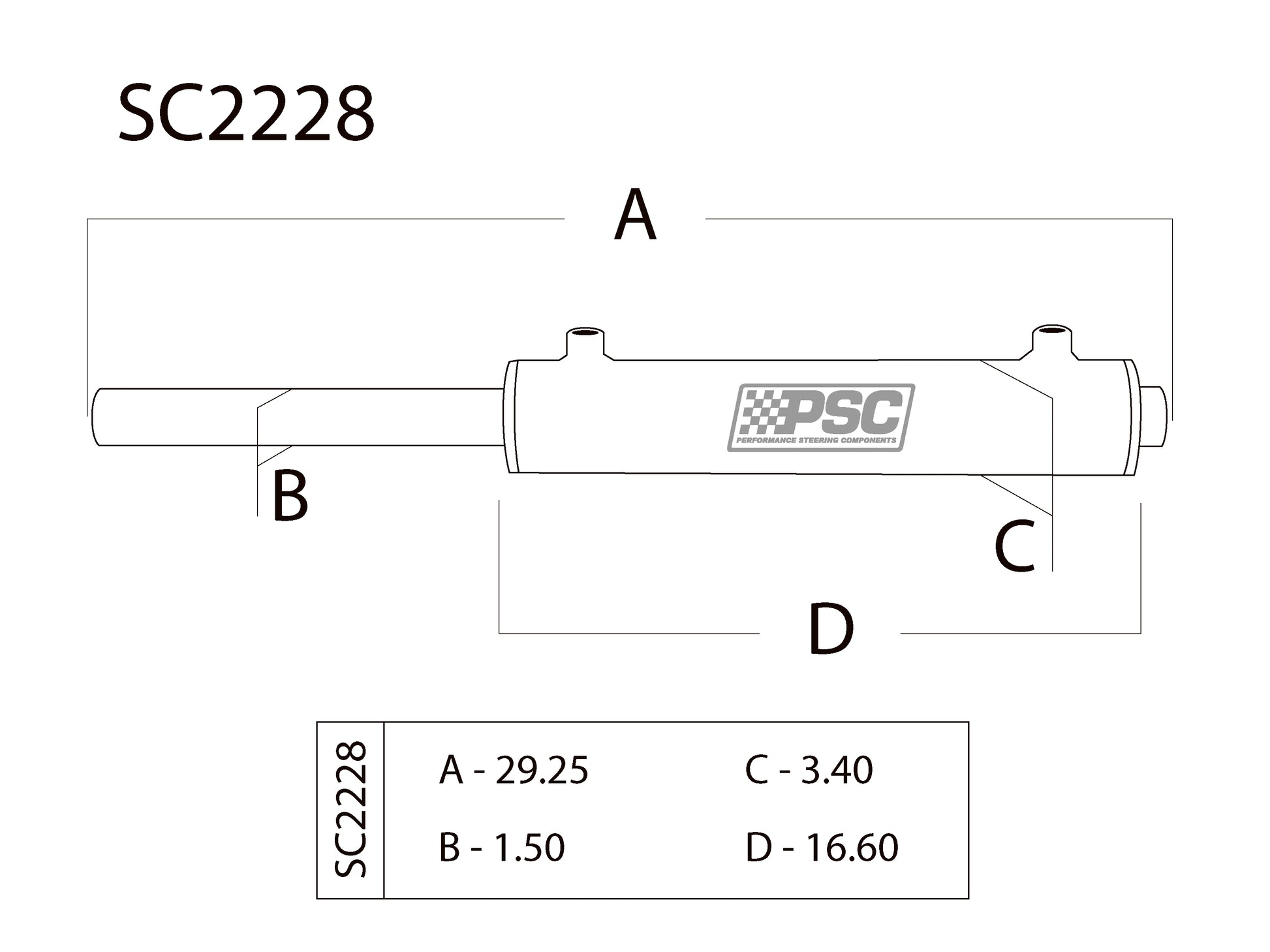

  • Cylinder Sizes: 2.25" x 6.0", 2.5" x 8.0", 2.5" x 8.75", 2.5" x 10.0", 2.75" x 8.0", 3.0" x 9.0", 3.0" x 11.0"
  • Clamp Options: 2 Clamps or 4 Clamps
  • Extras: Clevis Joints or SC16 Clevis Joints
  • Double-Ended Cylinder for balanced steering force

What’s included

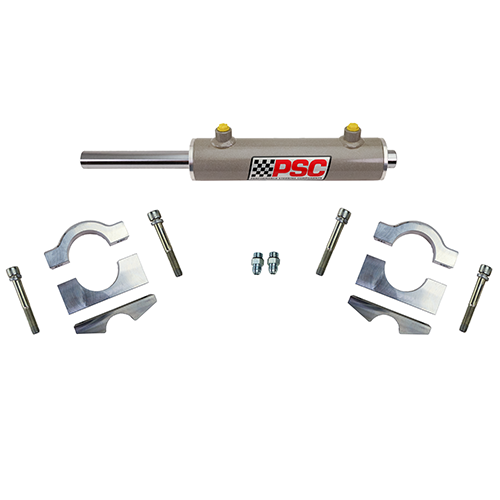

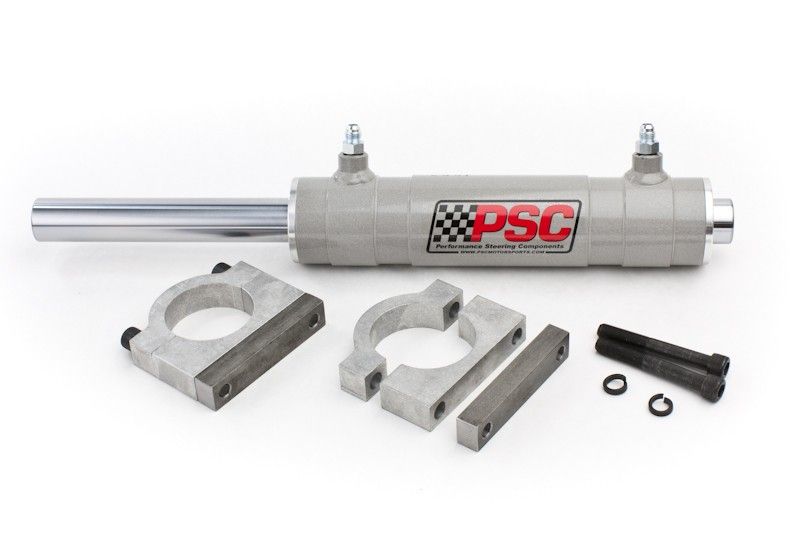

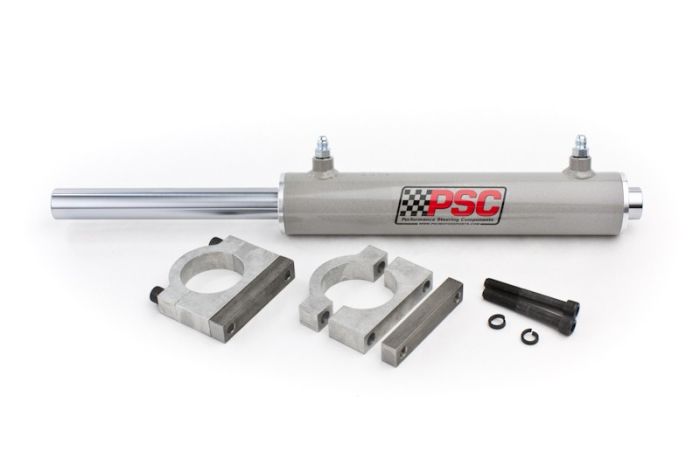

  • Double-Ended Cylinder (size based on your selection)

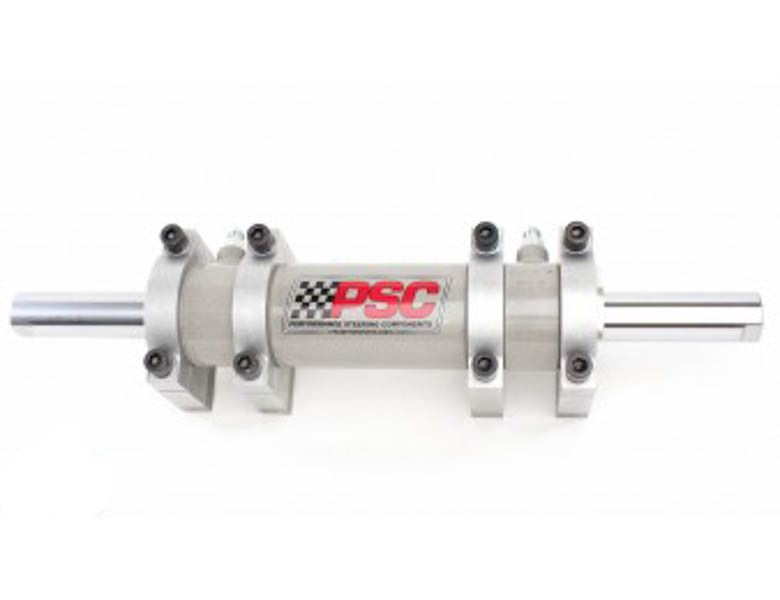

  • Clamps (2 or 4, depending on variant)
  • Optional Clevis Joints (if selected)
