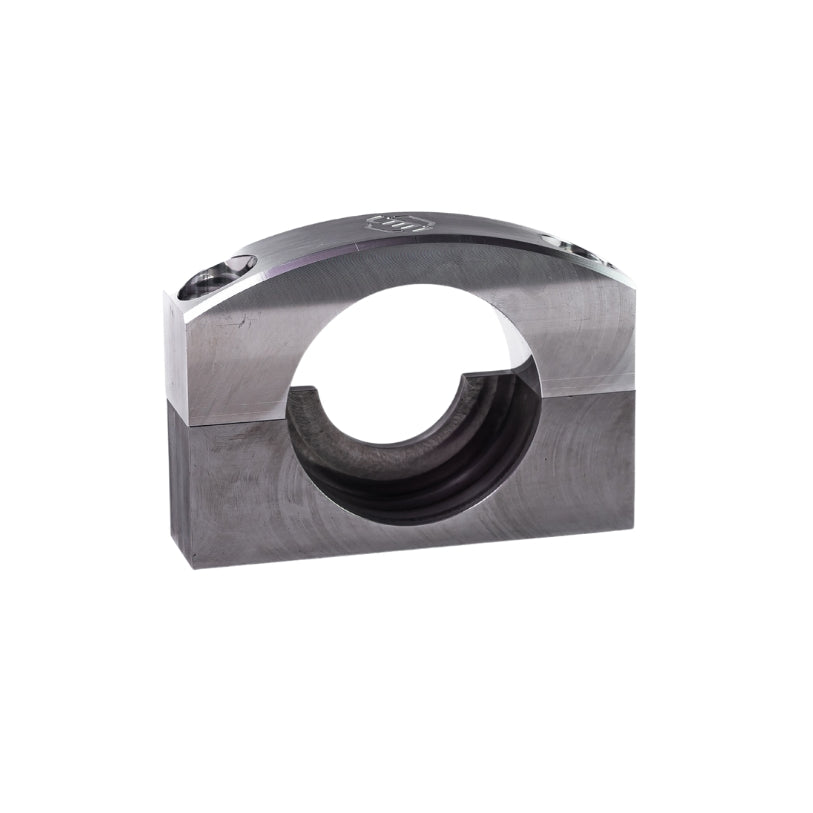

  • Metal cutting tool on a white background

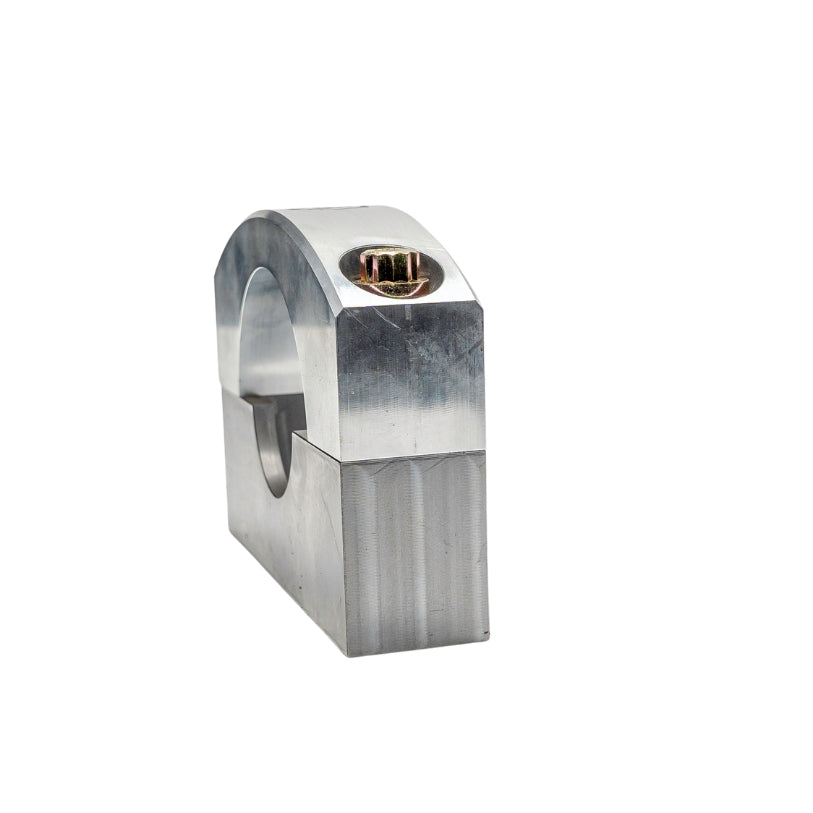

  • Metallic ring with a cylindrical center on a white background

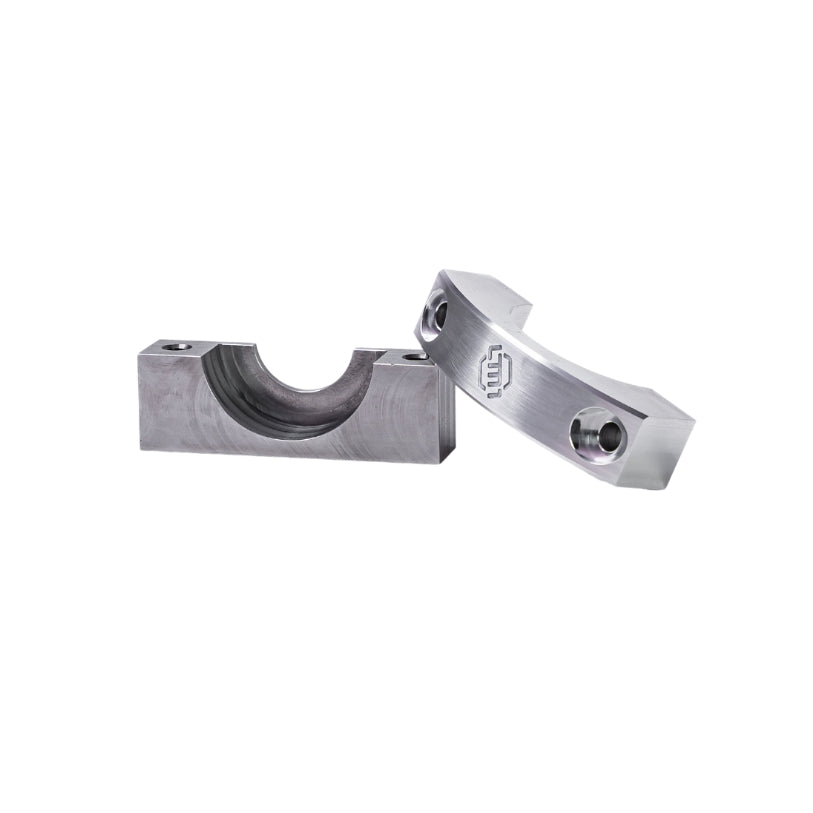

  • Metal mechanical component on a white background

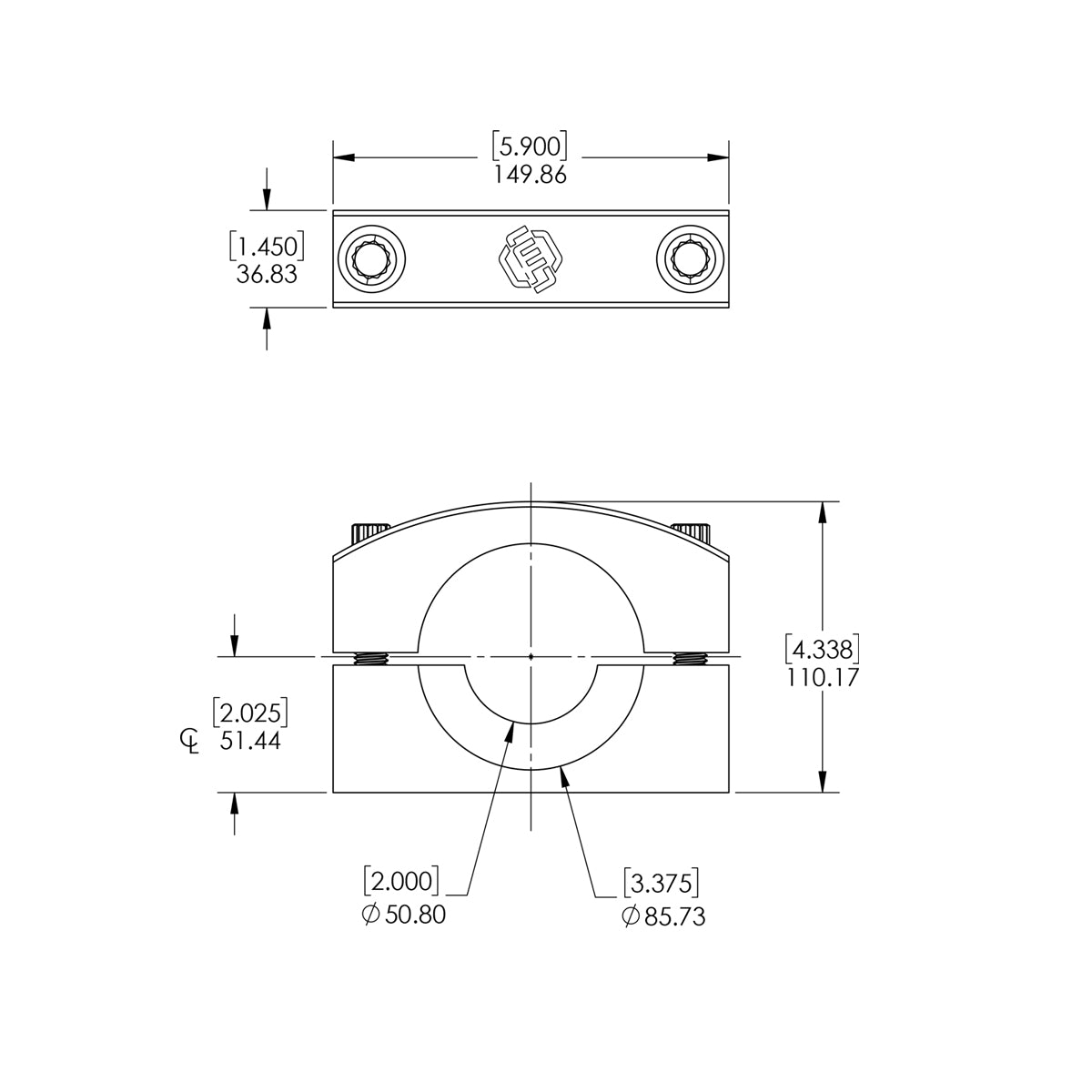

  • Technical drawing of a mechanical component with dimensions
1 5

Full Hydraulic Mount Clamp (Set of 2) for SC2217

Full Hydraulic Mount Clamp (Set of 2) for SC2217

$235.00
$235.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: LM1-TD00005

These mounts are built to keep your PSC double‑ended ram planted right where it ought to be. Each one starts as a solid chunk of steel, CNC‑machined clean and true, then finished with a bookend stop that keeps the ram from walking side to side when things get rowdy on the trail.

You’ll get 12‑point, 1/2‑13 Grade 8 zinc‑plated hardware that tightens down smooth and stays tight. For 3-inch PSC rams, the 3.375-inch OD clamp gives you a solid bite without chewing up the housing. It’s the kind of setup you bolt on once and don’t think about again — which is usually the goal.

View full details

About:About:

Why you’ll love it

  • Built from real steel, machined to fit PSC double‑ended rams like it should
  • Bookend stop keeps the ram from sliding sideways under load
  • Grade 8 hardware that doesn’t round off or loosen up
  • Clean, compact design that welds in easy and holds up for the long haul

Tech InfoTech Info

Heads‑up for installers

  • Mounts come ready to weld — make sure your tabs and truss area are prepped clean
  • Give yourself proper clearance for full ram sweep
  • Torque the Grade 8 hardware to spec and recheck after the first trip out

Fitment

  • Designed specifically for PSC double‑ended rams - SC2217
  • 3" ram applications use the 3.375" OD clamp

Ideal for

  • Rock crawlers and buggies that see heavy articulation and side loading
  • Full hydraulic steering builds needing a stable, no‑nonsense ram mount

Specs

Material: Precision CNC‑machined steel
Clamp Size: 3.375" OD for 3" PSC rams
Hardware: 12‑point 1/2‑13 Grade 8 zinc‑plated fasteners
Mount Style: Weld‑on with integrated bookend stop

What’s included

(2) Clamps
