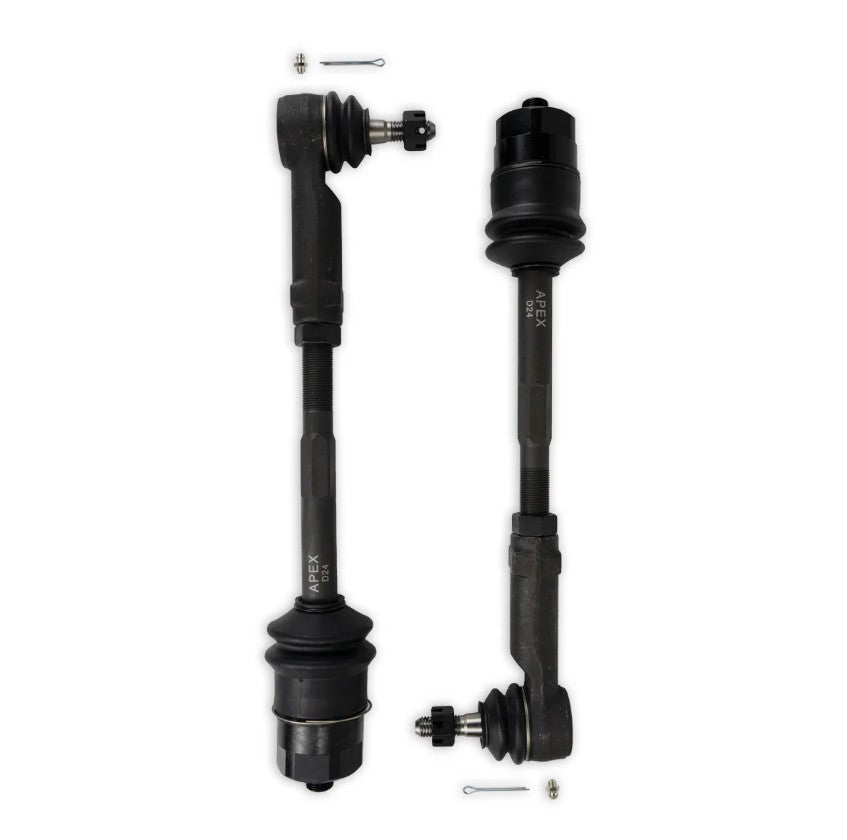

Super HD Tie Rod Assembly – Chevrolet/GMC 2500/3500HD (2001–2010)

Super HD Tie Rod Assembly – Chevrolet/GMC 2500/3500HD (2001–2010)

$260.00
$260.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: TRA109

Tie rods have a tough job. Every bump, pothole, turn, trailer, and oversized tire puts more load into the steering linkage.

The PSC Super HD Tie Rod Assembly is built for GM trucks that work for a living. Whether you're towing, hauling, running larger tires, or simply putting a lot of miles on your truck, this assembly is designed to provide a stronger connection between the steering components and the tires.

Built with forged housings, chromoly ball studs, metal-to-metal bearing construction, and greaseable service points, this assembly is made to handle the abuse that eventually wears out factory components.

When you're rebuilding the front end or tightening up a steering system that's seen better days, this is one of those upgrades you'll appreciate every time you get behind the wheel.

View full details

About:About:

Why you’ll love it

  • Built substantially larger than factory tie rod assemblies
  • Forged steel construction for added strength
  • Heat-treated chromoly ball studs
  • Greaseable design for long service life
  • Helps maintain steering control under heavy loads
  • Great upgrade for towing, work trucks, and larger tires
  • Designed for demanding street and off-road use

Tech InfoTech Info

Heads‑up for installers

  • A front-end alignment is recommended after installation.
  • Inspect the pitman arm, idler arm, center link, ball joints, and wheel bearings while servicing the steering system.
  • Grease all serviceable components during installation.
  • Always torque fasteners to factory specifications.
  • Worn steering components often wear together, so now is a good time to inspect the entire steering linkage.

Fitment

Chevrolet

  • Avalanche 2500 (2002–2006)
  • Silverado 1500HD (2001–2006)
  • Silverado 2500 (2001–2004)
  • Silverado 2500HD (2001–2010)
  • Silverado 3500 (2001–2006)
  • Silverado 3500HD (2007–2010)
  • Suburban 2500 (2001–2013)

GMC

  • Sierra 1500HD (2001–2006)
  • Sierra 2500 (2001–2004)
  • Sierra 2500HD (2001–2010)
  • Sierra 3500 (2001–2006)
  • Sierra 3500HD (2007–2010)
  • Yukon XL 2500 (2001–2013)

Hummer

  • H2 (2003–2007)

Use it with

  • PA803 XD Pitman Arm
  • PA807 High Performance Idler Arm
  • PSC Big Bore XD Steering Gear
  • Center Link Assemblies
  • Front-End Steering Rebuild Components

Ideal for

  • Heavy-duty towing
  • Work trucks
  • Fleet vehicles
  • Larger tire applications
  • Front-end rebuilds
  • Off-road use
  • Daily-driven HD trucks
  • Snowplow applications

Specs

  • Forged SAE 1045 steel housing
  • CNC-machined housing
  • SAE 4140 hot-forged chromoly ball studs
  • Polished ball stud design
  • Rolled threads
  • Metal-to-metal bearing construction
  • Greaseable assembly
  • CR rubber boots
  • Accordion-style dust boots
  • Includes grease fittings
  • Over twice the size of many OE designs

What’s included

  • (1) Super HD Tie Rod Assembly
