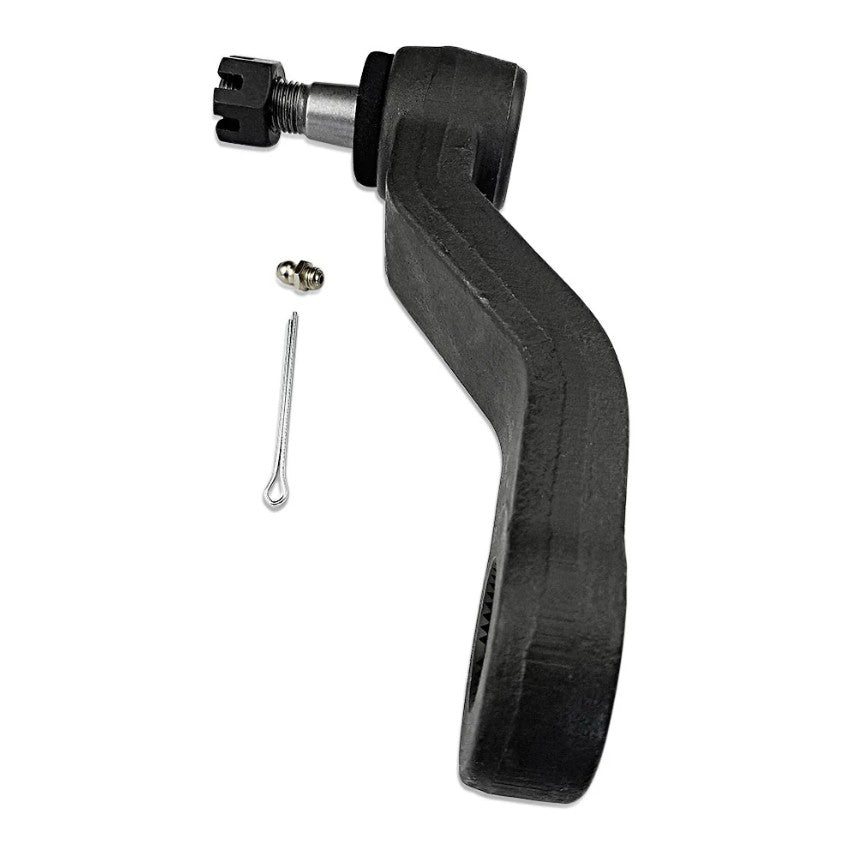

XD Pitman Arm – Chevrolet/GMC 2500/3500 (1999.5–2010) – 3 Spline

XD Pitman Arm – Chevrolet/GMC 2500/3500 (1999.5–2010) – 3 Spline

$70.00
$70.00
Sale Out of Stock
Shipping calculated at checkout.

Part Number: PA803

The pitman arm is one of the key links between your steering box and center link. When it starts wearing out, steering can feel loose, wander more than it should, and put added stress on the rest of the steering system.

The PSC PA803 XD Pitman Arm is designed for Chevrolet and GMC 2500HD and 3500HD trucks that see real work. Whether the truck spends its life towing, hauling, traveling rough roads, or carrying larger tires, this heavy-duty pitman arm is built to provide a solid connection and long service life.

Featuring a forged steel housing, heat-treated chromoly stud, and greaseable design, the PA803 is built to handle the loads that heavy-duty GM steering systems encounter every day.

When you're freshening up the front end, replacing a worn steering component, or installing other steering upgrades, this is one of those parts worth doing right the first time.

View full details

About:About:

Why you’ll love it

  • Helps tighten up loose or worn steering
  • Heavy-duty forged construction built for long service life
  • Heat-treated chromoly stud for added strength
  • Greaseable design for easy maintenance
  • Great choice for towing, larger tires, and hard-working trucks
  • Direct replacement for applicable GM HD applications

Tech InfoTech Info

Heads‑up for installers

  • A pitman arm puller is typically required for removal.
  • Inspect the idler arm, center link, tie rod ends, and steering gear while you're in there.
  • Grease the joint before putting the truck back on the road.
  • Always torque hardware to factory specifications.
  • A worn pitman arm usually isn't the only worn steering component, so it's a good time to inspect the entire linkage.

Fitment

Chevrolet

  • Silverado 2500HD (1999.5–2010)
  • Silverado 3500 (2001–2006)
  • Silverado 3500HD (2007–2010)

GMC

  • Sierra 2500HD (1999.5–2010)
  • Sierra 3500 (2001–2006)
  • Sierra 3500HD (2007–2010)

Use it with

  • PA807 High Performance Idler Arm
  • PSC Big Bore XD Steering Gear
  • Center Link Assemblies
  • Tie Rod Assemblies
  • Complete Front-End Steering Refreshes

Ideal for

  • Daily-driven HD trucks
  • Tow vehicles
  • Work trucks
  • Fleet trucks
  • Larger tire applications
  • Steering system rebuilds
  • Front-end refresh projects

Specs

  • 3-Spline Design
  • Forged Steel Housing
  • SAE 4140 Chromoly Ball Stud
  • Induction Heat-Treated Stud
  • Rolled Threads
  • Metal-to-Metal Bearing Design
  • Greaseable Construction
  • Pre-Threaded Grease Fitting

What’s included

  • (1) PA803 XD Pitman Arm
